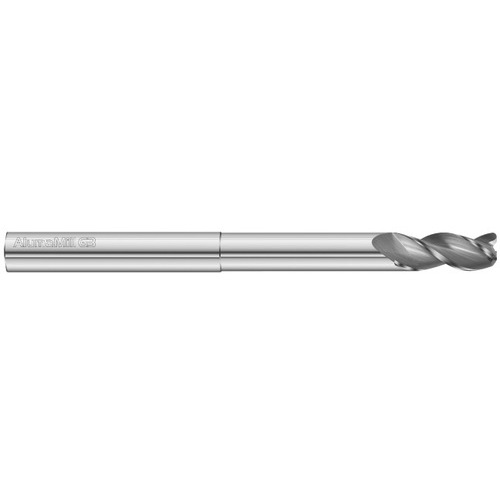

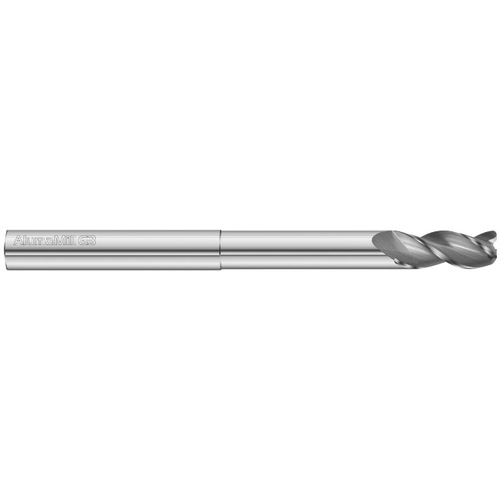

Corner Radius End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 150 mm OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833
| Cutting Diameter (DC) | 20 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Usable Length (LU) | 89 mm |
| Depth of Cut Maximum (APMX) | 38 mm | Corner Radius (RE) | 2 mm |
| Overall Length (OAL) | 150 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Long Reach |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.7874″ |
| Flute Helix Angle (FHA) | 37.5 Degrees | Series/List # | 3833 |
| Shank Type | Round |
Product Features
| Remarks | |
Country of Origin | UNITED STATES |
Shipping Info
Package Weight
1.330
