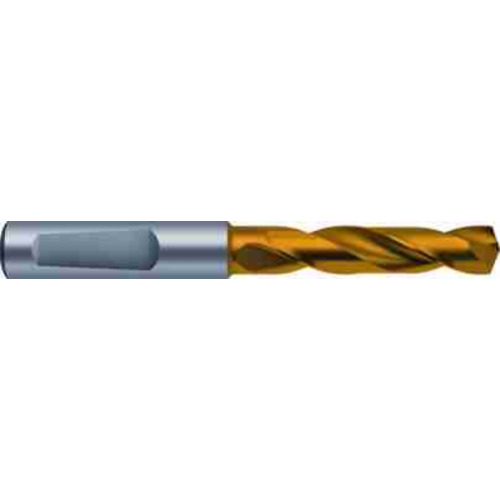

14.7 mm Dia. × 16 mm Shank × 65 mm Flute Length × 115 mm OAL, 3xD, 140°, TiN, 3xD Flute, Solid Carbide Drill
9011840147000 14.7MM CBD HP 3XD
| Drill Bit Size / Cutting Diameter (DC) | 14.7 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.5787″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 14.7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | TiN | Series/List # | 1184 |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Length Chip Flute (LCF) | 65 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 115 mm |
Product Features
| Family Description | 9011840147000 14.7MM CBD HP 3XD | Country of Origin | DE |
Shipping Info
Package Weight
1.175
