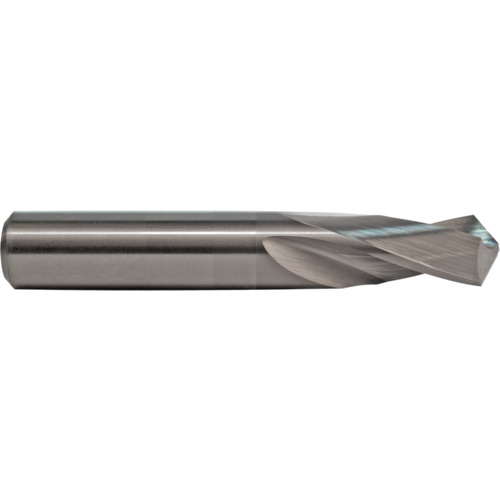

1/4″ Dia. × 1/4″ Shank × 1″ Flute Length × 2-1/2″ OAL, 3XD, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
Alternate Manufacture # 26406
| Drill Bit Size / Cutting Diameter (DC) | 1/4″ | Shape | Screw Machine |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1/4″ | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.25″ | Tool Type | Screw Machine |
| Length Group | 3xD | Point Shape | Point |
| Coating | Uncoated | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Series/List # | 206 |
| Coolant Supply Property (CSP) | External | Usable Length (LU) | 1″ |
| Point Angle (SIG) | 118 Degrees | Length Chip Flute (LCF) | 1″ |
| Flute Helix Angle (FHA) | 21 Degrees | Overall Length (OAL) | 2-1/2″ |
| Shank Type | Round | Flute Count (NOF) | 2 |
Product Features
| Family Description | Alternate Manufacture # 26406 | Country of Origin | UNITED STATES |
| Remarks | •Solid Carbide Stub Length Drills •118° Point 21° Helix Series 219 •Designed for drilling cast iron,aluminum, bronze and magnesium • An extremely efficient and -economical carbide drill • Shorter overhang reduces -deflectionand vibration, increases drill -accuracyand improves tool life • Micrograin 10% cobalt grade |
Shipping Info
Package Length
3.00000
Package Width
.20000
Package Height
.30000
Package Weight
.050
