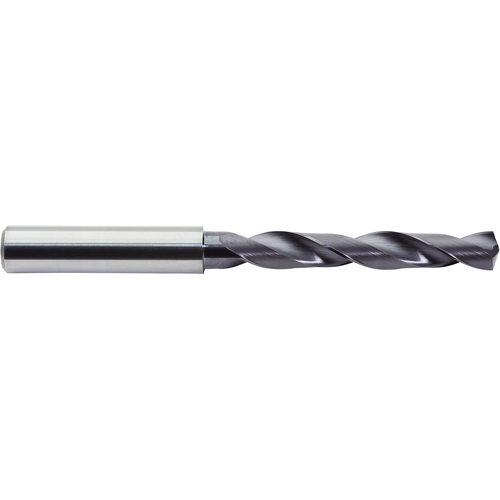

3 mm Dia. × 3 mm Shank × 24 mm Flute Length × 63 mm OAL, 5xD, 142°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill
Alternate Manufacture # 02346
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Shank Type | Round |
| Decimal Equivalent | 0.1181″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Tool Type | Solid Carbide Drills |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2XDSR |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 24 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 24 mm |
| Point Angle (SIG) | 142 Degrees | Overall Length (OAL) | 63 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
Product Features
| Family Description | Alternate Manufacture # 02346 | Country of Origin | USA |
| Remarks | •ALtima® (AlTiN) coated for extended tool life •Drills can be reconditioned and recoated •142° Point angle, 30° helix angle •Recommended for a broad cross section of materials at increased feed rates |
Shipping Info
Package Length
2.50000
Package Width
.31000
Package Height
.31000
Package Weight
.012
