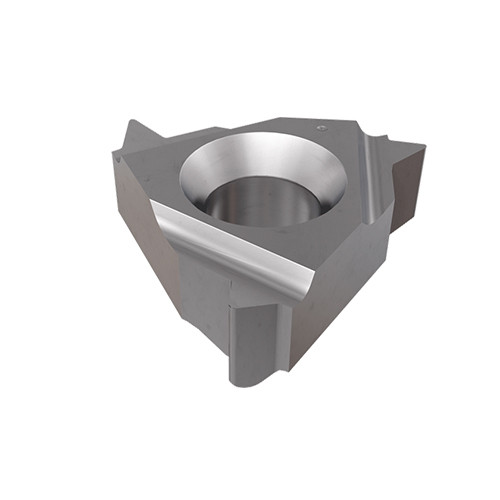

16IL 12 UN IC908
Internal American UN, full profile (UN, UNC, UNF, UNEF), laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general industry.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Left Hand |
| Insert Length (INSL) | 0.649″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 12 Threads/" | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0059″ | Tool Type | Threading Regular Inserts |
| Grade | IC908 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | UN60 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0394″ |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal American UN, full profile (UN, UNC, UNF, UNEF), laydown threading inserts. IR/L - Ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - With a chipformer. Application: general industry. | Country of Origin | Israel |
| Remarks | For Insert Identification System, click on More Info Tolerance: class 2B,ANSI B1, 3M-1986 |
Shipping Info
Package Weight
0.009
